CommScope x-1427435-4
Rp51.060

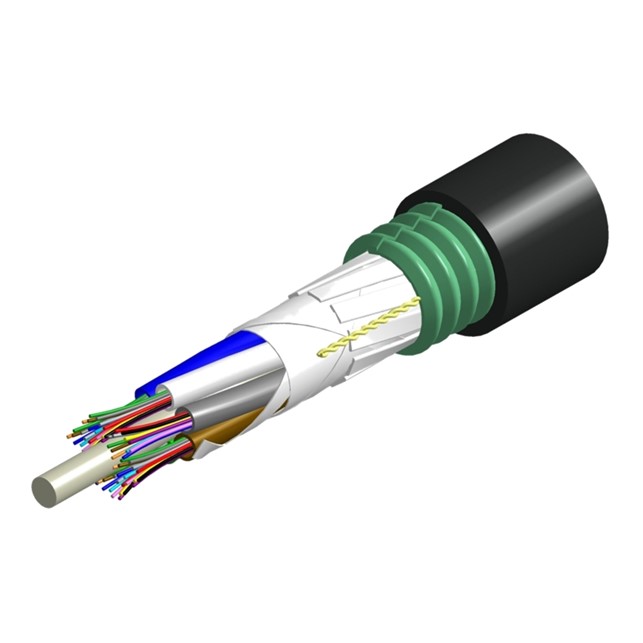

- Outside Plant Fiber Optic Cable, armored, 24-fiber, Singlemode, OS2, loose tube, gel-filled, 1000 m
Spesifikasi :
General Specifications
| Armor Type |
Corrugated steel |
| Cable Type |
Loose tube |
| Subunit Type |
Gel-filled |
| Filler, quantity |
3 |
| Jacket Color |
Black |
| Jacket Marking |
Meters |
| Fibers per Subunit, quantity |
12 |
| Total Fiber Count |
24 |
Dimensions
| Cable Length |
1000 m | 3280.84 ft |
| Diameter Over Jacket |
12.4 mm | 0.488 in |
Material Specifications
| Jacket Material |
High density polyethylene (HDPE) |
Mechanical Specifications
| Minimum Bend Radius, loaded |
248 mm | 9.764 in |
| Tensile Load, long term, maximum |
890 N | 200.08 lbf |
| Tensile Load, short term, maximum |
2700 N | 606.984 lbf |
| Flex |
25 cycles |
Optical Specifications
Optical Specifications, Wavelength Specific
| Standards Compliance |
ANSI/TIA-568.A | TIA-492CAAB (OS2) |
Environmental Specifications
| Installation temperature |
-20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
